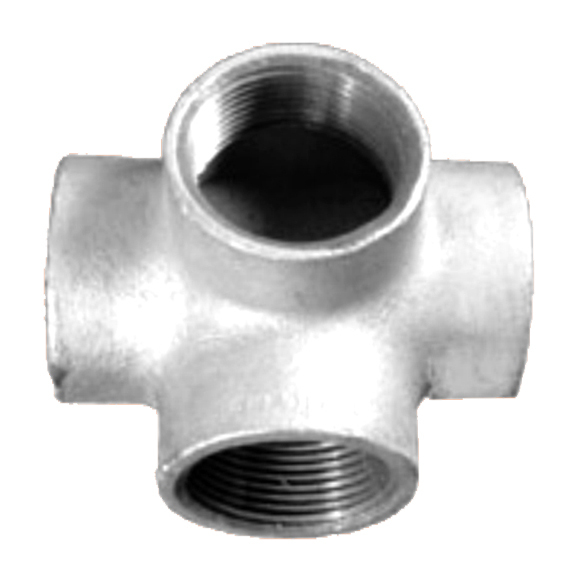

Side Outlet Tee (4-Way Tee)

Side Outlet Tee (4-Way Tee) Specification

Product Type
Side Outlet Tee (4-Way Tee) Za2

Material
Galvanized Malleable Iron

Finishing
Hot Dip Galvanized/Pre-Galvanized

Surface Treatment
Galvanized

Connection
Threaded

Standard
BS EN 1562, BS EN 10242

Size
15 mm

Corrosion Resistance
Yes

Temperature Range
-20C to 300C

Packing Type
Carton Box or as per requirement

Application
Used in tube structure connections for railings, handrails, and frameworks

Thread Type
BSP (British Standard Pipe)

Weight
Varies by size

Color
Silver/Grey

Feature
Precision design, Durable, Rustproof

Side Outlet Tee (4-Way Tee) Trade Information

Minimum Order Quantity
250 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

About Side Outlet Tee (4-Way Tee)

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300
Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.)
Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m²
Threads: As per IS:554-1999 both parallel & taper.
Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3.
Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	15	20	25	32	40	50	65	80	100	125	150
a	28	33	38	45	50	58	69	78	96	115	131

Side Outlet Tee (4-Way Tee) Za2 is an in-demand fitting, praised in favorable reviews for its precision design and astounding performance. Crafted from decorated galvanized malleable iron, it is perfect for tube structure connections such as railings, handrails, and frameworks. Rustproof, durable, and corrosion resistant, each piece boasts a silver/grey finish achieved through advanced hot dip or pre-galvanization. Available in sizes from 1/2 to 2 inches, with threaded BSP connections, the Za2 meets stringent BS EN standards. Grab yours today and experience industry-leading reliability!

Application & Versatility of Side Outlet Tee (4-Way Tee) Za2

The Side Outlet Tee (4-Way Tee) Za2 is designed to deliver seamless performance across a range of applications. It features a corrosion-resistant surface suitable for both decorative and functional tube structures such as railings, handrails, and robust frameworks. Its adaptable design and galvanized finish make it a popular choice for both indoor and outdoor environments, ensuring longevity and versatility in usage.

Export Markets, Quick Dispatch & Certifications for Za2

Side Outlet Tee (4-Way Tee) Za2 is exported globally, primarily to Europe, the Middle East, Africa, and Southeast Asia. Samples can be provided upon request, often with a nominal charge and estimated delivery time provided upfront. Backed by certifications like BS EN 1562 and BS EN 10242, we ensure quick dispatch and reliable logistics so customers receive certified, high-quality products efficiently.

FAQ's of Side Outlet Tee (4-Way Tee) Za2:

Q: How is the Side Outlet Tee (4-Way Tee) Za2 typically used?

A: This fitting is mainly used for connecting tubes in structures such as railings, handrails, and frameworks, providing a neat and sturdy junction point for four-way connectivity.

Q: What benefits does the galvanized finish provide?

A: The galvanized surface offers excellent corrosion resistance and rustproof performance, making this tee highly suitable for both indoor and outdoor applications while also enhancing its lifespan.

Q: Where can Side Outlet Tee (4-Way Tee) Za2 be installed?

A: Za2 tees are ideal for installation in construction sites, commercial settings, industrial frameworks, and even decorative railings in residential areas due to their durable and attractive finish.

Q: What certifications does the product meet?

A: The Side Outlet Tee (4-Way Tee) Za2 complies with international standards such as BS EN 1562 and BS EN 10242, ensuring quality and safety are maintained at all times.

Q: How quickly can I receive a sample or bulk order?

A: We offer quick dispatch on both samples and bulk orders, with delivery estimates provided upon request. A nominal charge may apply for samples, depending on your location and requirements.
